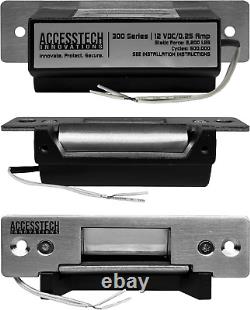

Heavy Duty Electric Strike Door Lock ANSI Standard Access Control System 2,200


4.87 x 1.69 x 1.25 inches. Item dimensions L x W x H. Laboratories, Restricted Areas, Data Centers, ? Controlled access in office spaces. GuardFatal(f)(_np);else{f(_np);}function(P) P. On'a:truncate:po-attribute-truncate-1:updated', function(data) var isTruncated =!

GetIfTextFits; var seeMoreElement = document. GetElementById('po-attribute-see-more-id-1'); if(seeMoreElement) seeMoreElement.' :'none'; ; ; Field Adjustable (Fail Secure/Safe), NO / NC Wiring Options, Commercial & Residential, Burglary Resistant, 12v DC See more. Field Adjustable (Fail Secure/Safe), NO / NC Wiring Options, Commercial & Residential, Burglary Resistant, 12v DC. 1 x User Manual, 2 x Mounting Tabs, 6 x Screws (4x Metal Door Screws & 2x Wood Door Screws), ?

1 x Diode, 1 x ANSI Standard Electric Door Strike Device. FAIL-SECURE / FAIL-SAFE ADJUSTABLE: Lock can be switched between both modes by adjusting a screw. Fail Secure (Default) means device is Locked when Unpowered, Fail Safe means device is Unlocked when Unpowered.

LEFT & RIGHT HANDED DOORS: Can be installed to work with doors that have their handle on their left side in addition to doors with the handle on the right. ACCESS CONTROL: Electric door strike can convert cylindrical lock sets into an electronic access controlled locking system. STRONG & DURABLE: Jaw Strength rated at 2,200 Lbs and cycle tested up to 500,000 times.

Convert Cylindrical Mechanical Locks Into An Electronic Access-Controlled Locking System. Fail Secure (NO) (Default) - When Unpowered, strike is Locked. Fail Safe (NC) - When Unpowered, strike is Unlocked. Normally Open (NO) / Normally Closed (NC) Wiring. Fail Secure - Normally Open (NO) - Strike is Normally Unpowered and remains locked, Unlocks when power is added. Fail Safe - Normally Closed (NC) - Strike is Normally Powered and remains locked, Unlocks when power is removed. Operation: Normally Open (NO) / Normally Closed (NC). Dimensions (LxWxH): 4-7/8" x 1-11/16" x 1-1/4 (124x43x32mm).

Materials: Stainless Steel / Metal Alloy. White: Power (No Polarity) - Either one can be positive or negative.

Protects equipment from electromagnetic surges - Leg with White Stripe attaches to Positive Wire. 1 x 300 Series Electric Strike Lock Body. 6 x Mounting Screws 4x Metal Frame Screws & 2x Wood Frame Screws.

We recommend the customer checks with their local fire authority to see if any additional products are needed to comply with local fire codes. We offer the best prices around on high quality products.
